Single Sign-On/SAML

1. Choose > Administration> Overview > Fusion > Single Sign-On / SAML.

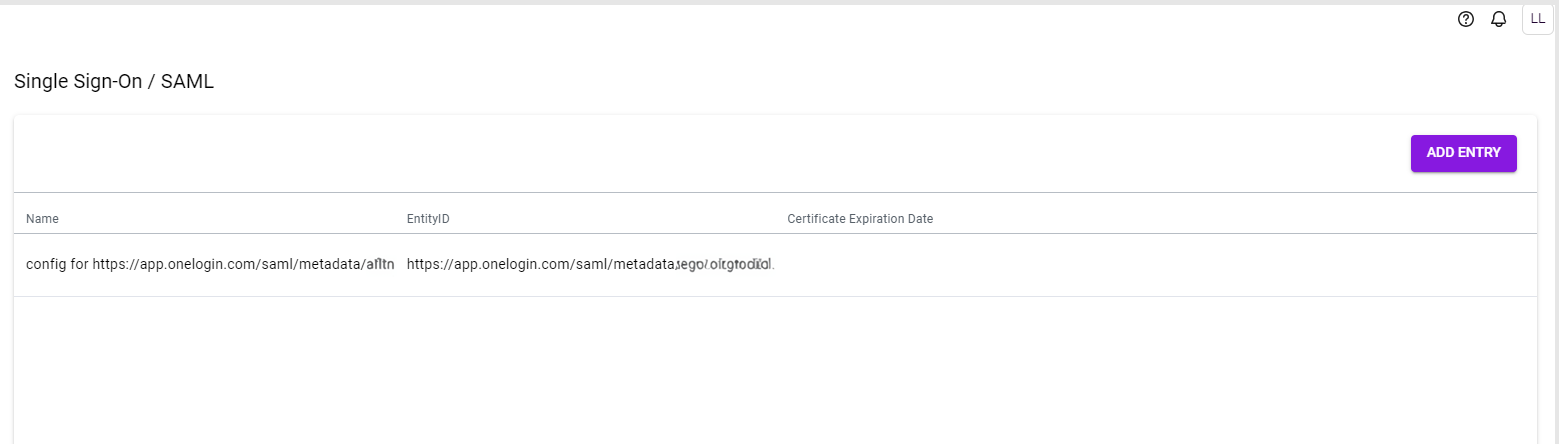

   If a configuration has not been created, you are guided directly to the fields to be edited. If at least one configuration exists, the following page is displayed:



2. Click Add Entry.

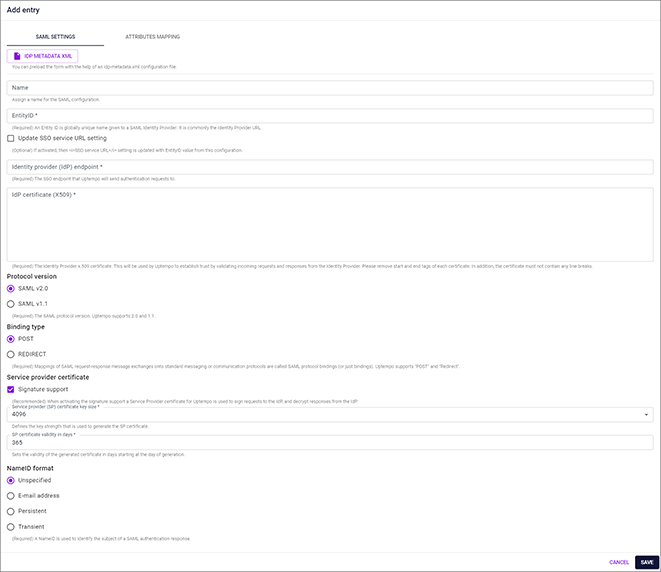

The Add Entry dialog is displayed with the SAML Settings tab:



3. Fill in the fields by uploading the XML file for the IdP metadata or change the required parameters manually:

   Note:The settings that you must edit are determined by the setting of your identity provider.

   • Name: Enter a name for the new configuration.

   • Configuration name (EntityID): Enter the entity ID of your identity provider. An entity ID is the globally unique name for an SAML identity provider. This is usually the identity provider URL.

   • Identity provider (IdP) endpoint
     Enter the full URL that your identity provider uses to receive SSO messages.

   • IdP certificate (X509)
     Enter the public key certificate of your identity provider (X.509) in PEM format.

   • Protocol version
     Select the SAML protocol version that is used between Uptempo (SP) and your identity provider: SAML 1.x or SAML 2.0. SAML 2.0 is recommended.

   • Binding type
     Select the transport type used between Uptempo (SP) and your identity provider: POST or REDIRECT. REDIRECT corresponds to HTTP-GET.

   • Signature support
     Messages can be signed for security (to establish trust).
     Choose whether signature support between Uptempo (SP) and your identity provider is activated.

   • Service provider (SP) certificate key size
     Define the key size for the service provider certificate.

   • SP certificate validity in days
     Define the validity period for the service provider certificate in days.

   • NameID format
     Select the NameID format. Your SAML identity provider must declare the format in its metadata.

   • System settings
     Activate the Update SSO service URL checkbox if you want to avoid the manual entry in the system settings. If you activate the checkbox, the system setting is automatically updated with the data from the configuration. Note that the data of the last saved configuration is always entered in the setting.

4. Optional: If you need a mapping of your attributes to the SAML attributes of the Uptempo platform:

   1. Go to the Attribute Mapping tab.

   2. Select the required SAML attribute of the Uptempo platform from the drop-down list by activating the checkboxes.

   3. Click a point outside the picklist to close it.

   4. All selected attributes are displayed in the dialog.

   5. For each attribute, enter the name of the appropriate parameter in your system.

5. Click Save.

Uptempo is configured as a service provider for SSO via SAML.
